A highly effective alternative to steel and corrosion protected steel bar (rebar)
A highly effective alternative to steel and corrosion protected steel bar (rebar)

About

FRP reinforcement bar is made from high strength glass fibre reinforced with vinyl ester resin. The core of the rebar has all the reinforcing fibre (70% by weight ) along the length of the bar for maximum strength. A helical recess in the surface of the rebar is created in the production process which does not damage the core fibre and is sufficiently deep to give a key to enable the concrete to have a mechanical grip on the rebar.

The choice of vinyl ester resin for the rebar is important. Extensive research work has shown that polyester resin does not have the necessary long term resistance to the corrosive chemicals in the concrete while rebar made with vinyl ester resin gives a 50 year service life when used in accordance with the recognised published standards.

  • Corrosion resistant
  • Superior tensile strength
  • 75% lighter than steel
  • Non-conductive
  • Low thermal conductivity
  • Fatigue resistant
  • Impact resistant
  • Non-magnetic
Frp-rebar1

Fibre reinforced reinforcement bar is made from high strength glass fibre reinforced with vinyl ester resin. The core of the rebar has all the reinforcing fibre (70% by weight) along the length of the bar for maximum strength. A helically recess in the surface of the rebar is created in the production process which does not damage the core fibre and is sufficiently deep to give a key to enable the concrete to have a mechanical grip on the rebar.

The choice of vinyl ester resin for the rebar is important. Extensive research work has shown that polyester resin does not have the necessary long term resistance to the corrosive chemicals in the concrete while rebar made with vinyl ester resin gives a 50 year service life when used in accordance with the recognised published standards.

Technical Data

Engineered Composites carry a range of standard sizes of GRP Rebar as stock items. These are highlighted in yellow in the technical data table below. These products are all in the natural (unpigmented) colour of the composite and are in 5m lengths. The 28mm diameter rebar, highlighted in red has a sanded finish applied on top of the helical winding pattern giving additional contact area to grip the concrete.

Diameter
(mm)
Cross Section
(mm2)
Density
(g/cm3)
Weight
(g/m)
Ultimate
Tensile(KN)
Ultimate Tensile
Strength(Mpa)
Ultimate Shear
Strength(Mpa)
E-modulus
(GPa)
3 7 2.2 18 13.5 1900 >150 >40
4 12 2.2 32 18 1500 >150 >40
6 28 2.2 51 36 1280 >150 >40
8 50 2.2 98 54 1080 >150 >40
10 73 2.2 150 72 980 >150 >40
12 103 2.1 210 99 870 >150 >40
14 134 2.1 275 117 764 >150 >40
16 180 2.1 388 149 752 >150 >40
18 248 2.1 485 189 744 >150 >40
20 278 2.1 570 225 716 >150 >40
22 355 2.1 700 270 695 >150 >40
25 478 2.1 970 342 675 >150 >40
28 590 2.1 1195 432 702 >150 >40
30 671 2.1 1350 450 637 >150 >40
32 740 2.1 1520 504 626 >150 >40
34 857 2.1 1800 540 595 >150 >40
36 961 2.1 2044 585 575 >150 >40
40 1190 2.1 2380 640 509 >150 >40

GRP Rebar can be made to order in any straight length up to 11m in the standard helical wind finish or a sanded finish.

rebar-colourColour

The GRP Rebar that is available from stock is the natural, un-pigmented colour of the resin/glass composite ie-semi translucent beige. GRP Rebar can be made to order in a range of colours to customer specification. It is sometimes useful to colour code different diameters to avoid confusion in locating the correct size of bar in a complex reinforcement array.

rebar-bendsFlexibility

Grp Rebar is more flexible than steel Rebar so can easily be bent to a curve without adding excessive strain.

For corners and columns, pre-made sub-assemblies in a range of sizes are available to order.

rebar-meshMesh

Mesh Panels can be supplied to customer specification.

sand-coated1

There is also an option to have an additional sanded finish overlaid on the helical pattern to give an additional key.

Technical Data

Engineered Composites carry a range of standard sizes of GRP Rebar as stock items. These are highlighted in yellow in the technical data table below. These products are all in the natural (unpigmented) colour of the composite and are in 5m lengths. The 28mm diameter rebar, highlighted in red has a sanded finish applied on top of the helical winding pattern giving additional contact area to grip the concrete.

Diameter
(mm)
Cross Section
(mm2)
Density
(g/cm3)
Weight
(g/m)
Ultimate
Tensile(KN)
Ultimate Tensile
Strength(Mpa)
Ultimate Shear
Strength(Mpa)
E-modulus
(GPa)
3 7 2.2 18 13.5 1900 >150 >40
4 12 2.2 32 18 1500 >150 >40
6 28 2.2 51 36 1280 >150 >40
8 50 2.2 98 54 1080 >150 >40
10 73 2.2 150 72 980 >150 >40
12 103 2.1 210 99 870 >150 >40
14 134 2.1 275 117 764 >150 >40
16 180 2.1 388 149 752 >150 >40
18 248 2.1 485 189 744 >150 >40
20 278 2.1 570 225 716 >150 >40
22 355 2.1 700 270 695 >150 >40
25 478 2.1 970 342 675 >150 >40
28 590 2.1 1195 432 702 >150 >40
30 671 2.1 1350 450 637 >150 >40
32 740 2.1 1520 504 626 >150 >40
34 857 2.1 1800 540 595 >150 >40
36 961 2.1 2044 585 575 >150 >40
1190 2.1 2380 640 509 >150 >40

GRP Rebar can be made to order in any straight length up to 11m in the standard helical wind finish or a sanded finish.

rebar-colourColour

The GRP Rebar that is available from stock is the natural, un-pigmented colour of the resin/glass composite ie-semi translucent beige. GRP Rebar can be made to order in a range of colours to customer specification. It is sometimes useful to colour code different diameters to avoid confusion in locating the correct size of bar in a complex reinforcement array.

rebar-bendsFlexibility

Grp Rebar is more flexible than steel Rebar so can easily be bent to a curve without adding excessive strain.

For corners and columns, pre-made sub-assemblies in a range of sizes are available to order.

rebar-meshMesh

Mesh Panels can be supplier to customer specification.

Mesh Panels

Bespoke sizes of Mesh Panels can be made in bespoke sizes using any of the rebar diameters available.

rock bolts

Rock bolts are used in mines and tunnels to attach the rock to the rock bed.

Hollow rock bolts

Hollow Rock Bolts are drilled into rock faces using GRP Drills which are then sacrificed and resin is inserted down the inside of the rock bolt which then cures.

corner and sub assembly

These products are made to order.

Epoxy-Resin-and-Basalt-Fibre-Rebar1

All our standard products listed are made in glass fibre reinforced vinyl ester. However there are two alternative materials available with higher properties than the standard materials:

  • Epoxy resin as a more corrosion resistant resin alternative to vinyl ester.
  • Basalt fibre which has a higher strength and stiffness than glass fibre.
  • Composite rebar made with either or both of these alternative materials is available to order.

We stock an extensive range of GRP Rebar in its natural unpigmented colour, semi-translucent beige. We can source a range of coloured GRP Rebar to suit exact specifications, as it is often useful to colour code different diameters when undertaking complex reinforcement projects. If required, the surface can be sanded to increase adhesion to concrete.

Bespoke rebar mesh panels can be made to order and we also stock accessories, including rock bolts, and self-drilling rock bolts.

– Available in 5m lengths
– Stock of 6, 8, 10, 16, 20, 25 and 32mm diameter is held
– Available with sanded finish

Environmental considerations

Assessment of the through life environmental impact of different materials is never clear cut and depends, in part, on the assumptions made. Overall composite rebar is seen as having a lower impact than steel rebar for the following reasons:

  • Lower energy use to manufacturer the raw materials and in production
  • Lighter weight so less energy used in transport
  • Possibility of reduced concrete cover results in lower utilisation of cement and cement produces 20 times more CO2 emissions during processing than steel.
  • Longer service life because no corrosion of the rebar
  • Less chemicals and other materials required for maintenance
  • While the steel rebar can be recovered and recycled from demolished sites, the energy required to cut and break up a steel reinforced structure is higher than for composite rebar which is easily cut and crushed and recycled with the aggregate.

Structures Exposed To De-Icing Salts

– Bridge decks
– Car parks
– Elevated Road Ways

Structures Built In Or Close To Sea Water

– Caissons
– Dry Docks
– Jetties, Piers and Quays
– Off Shore Platforms
– Sea Defences and Walls

Structures Subject To Other Corrosive Agents

– Chimneys
– Petrochemical Plants
– Paper / Pulp Mills
– Nuclear Power Stations
– Wastewater Treatment Plants

Structures Requiring Low Electrical Conductivity / Electromagnetic Neutrality

– Airport Control Towers
– Aluminium / Copper Smelting Plants
– Telecoms / Transmission Tower Bases
– Railway Crossings
– Toll Road Sensing Arrays and Collection Booths
– Magnetic Resonance Imaging In Hospitals

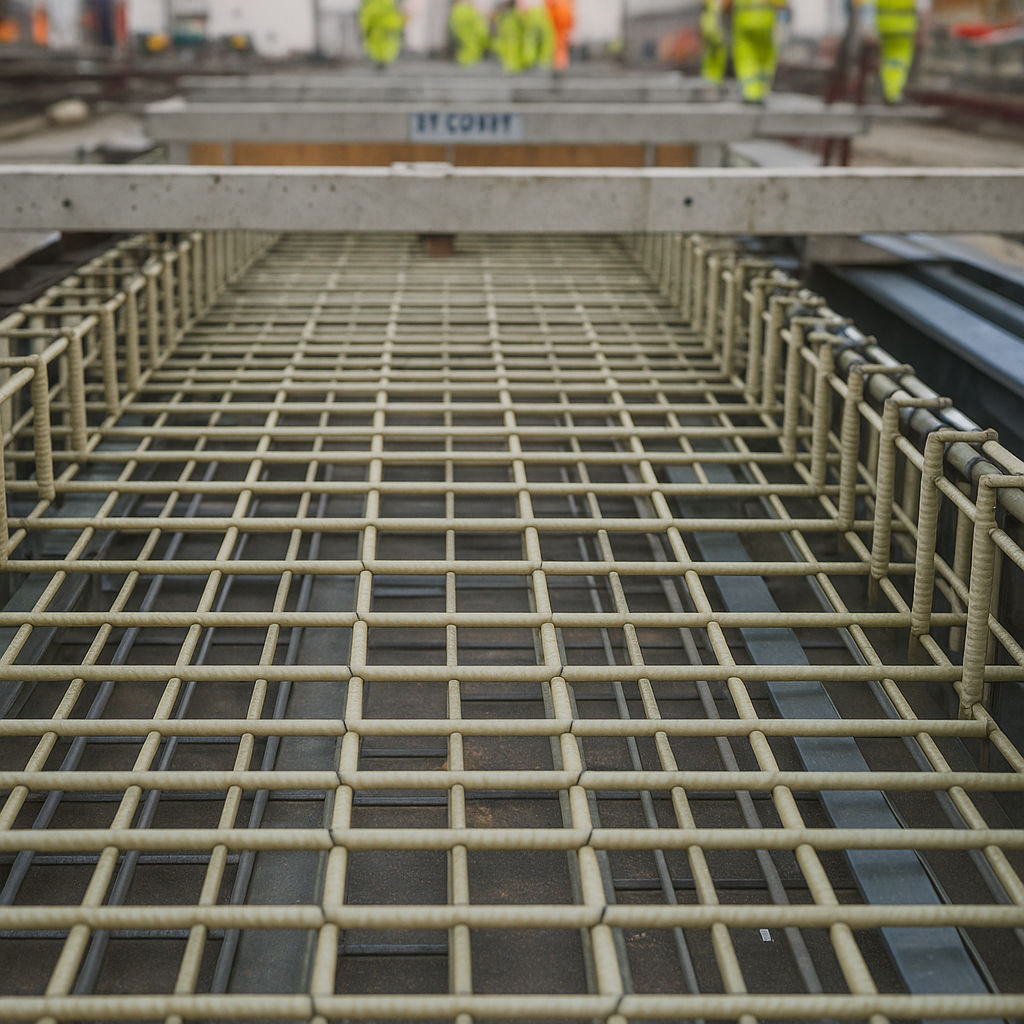

Structures Required In Boring / Tunnelling Applications Requiring Temporary Concrete Structures

– Mining Walls
– Underground Rapid Transport Structures
– Underground Vertical Shafts

Weight Sensitive Structures

– Construction in Areas of Poor Load Bearing Soil
– Remote Locations
– Sensitive and Environmental or Seismic Areas

Thermally Sensitive Applications

– Thermally Insulated Concrete Housing
– Basements and Heated Floors

Underwater sculptures created with Rebar
Underwater sculptures created with Rebar

Sculptures created by Jason deCaires Taylor.

Hartlepool Sea Defences - uses GRP rebar in the concrete rock face.
Hartlepool Sea Defences - uses GRP rebar in the concrete rock face.
Sea defence walling at Hartlepool Headland
Sea defence walling at Hartlepool Headland
Sea defence walling at Hartlepool Headland
Sea defence walling at Hartlepool Headland
Sea defence walling at Hartlepool Headland
Sea defence walling at Hartlepool Headland

With thanks to Poundfield Products.
